Technical section
Technical cross sections through our constructions. All dimensions in millimetres, the glass is 8 mm in the standard specification.

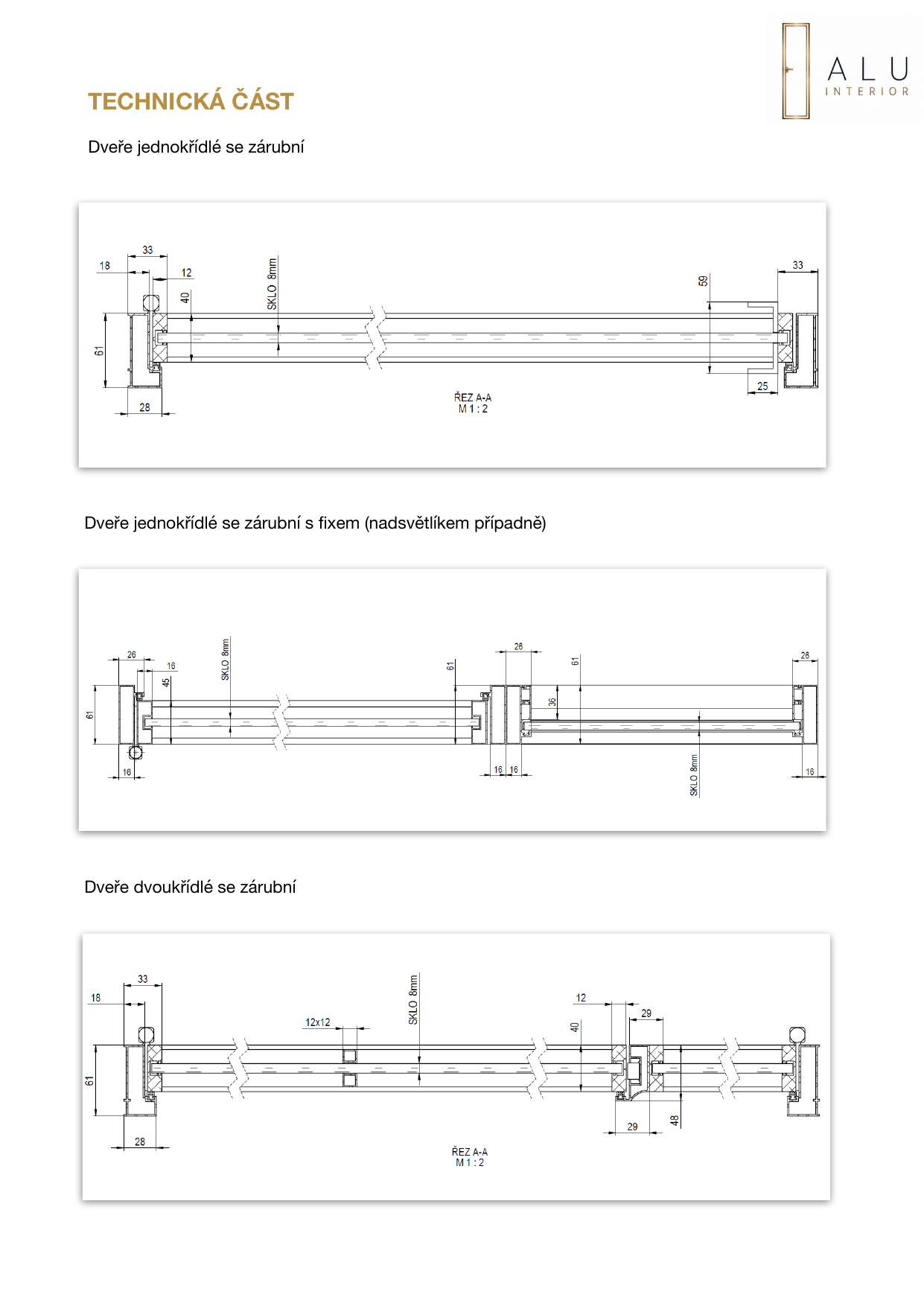

Doors with frame
Single leaf with frame, single leaf with frame and fixed panel (optionally a transom light), and double leaf with frame.

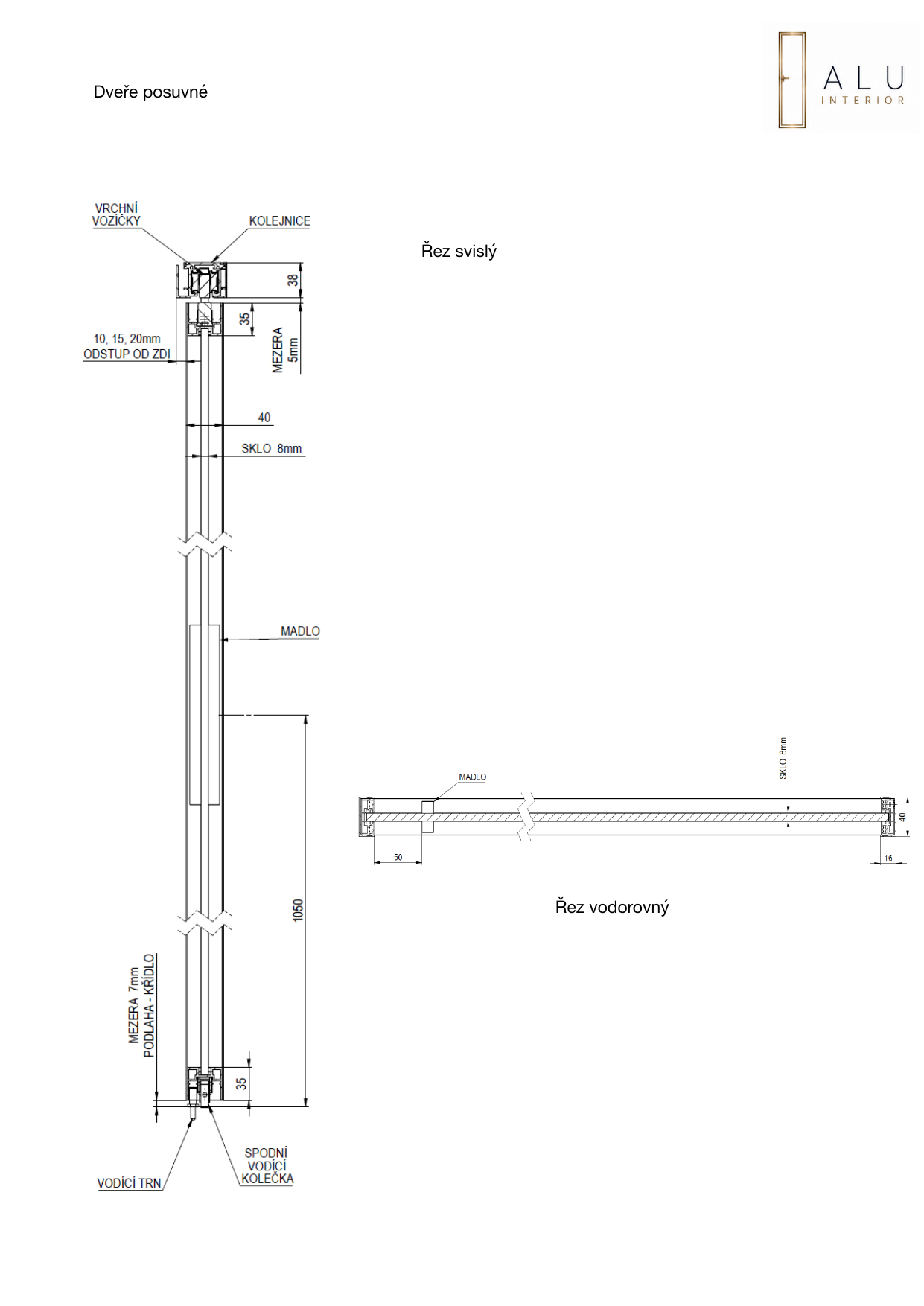

Sliding doors
Vertical and horizontal section through a sliding door including the track, carriages and floor guide.

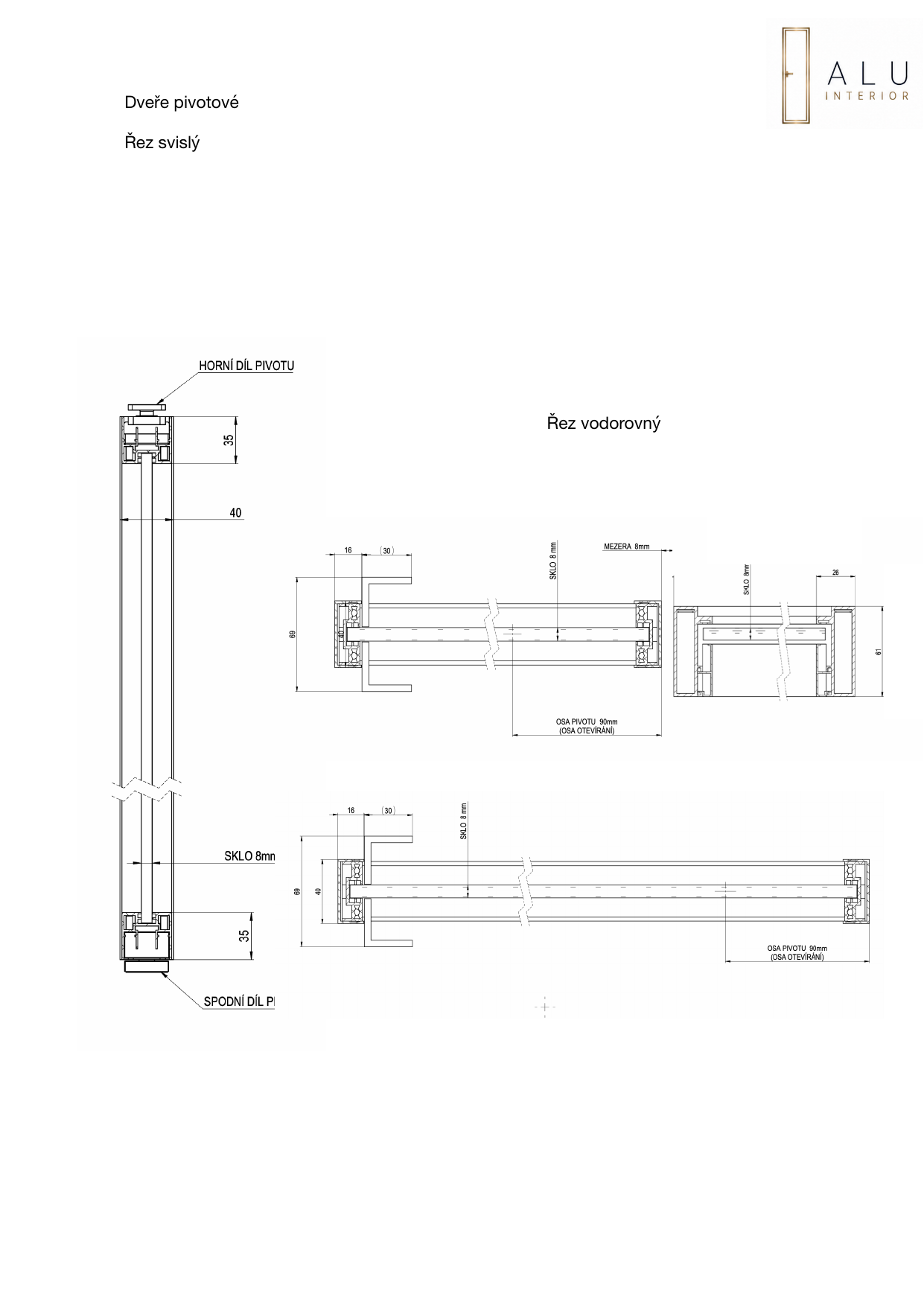

Pivot doors
Vertical and horizontal section through a pivot door. The pivot axis sits 90 mm from the edge.
